Growatt NEO 800W Microinverter

If you are interested in buying the inverter of your choice in bulk quantities, contact our team info@growatt.tech

Growatt NEO 800W Microinverter

Growatt NEO 800W Microinverter

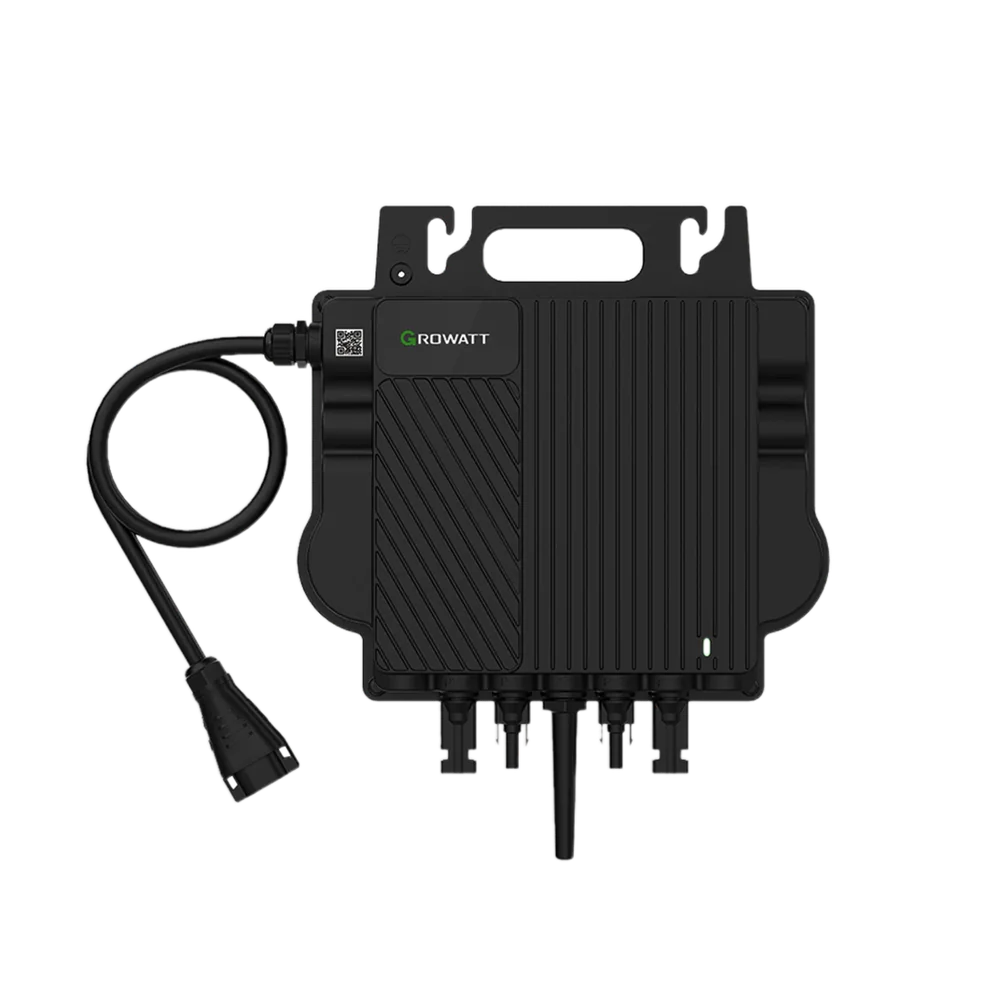

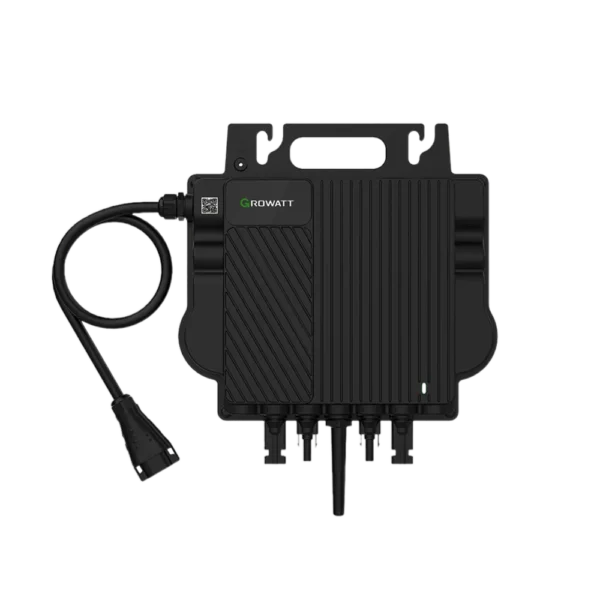

Growatt NEO 800W Microinverter is a technologically advanced device designed for photovoltaic systems, combining high efficiency with reliability. It supports PV modules with an output from 320 W to 540 W and more, delivering a maximum output power of 800 W and a maximum apparent power of 800 VA. It features an impressive efficiency of up to 97.3% and a maximum power point tracking (MPPT) efficiency of 99.5%, ensuring optimal use of solar energy.

The NEO 800 operates within a wide voltage range – from a start voltage of 16 V up to a maximum DC voltage of 60 V. Built for durability, the device has an IP67 protection rating, making it fully resistant to dust and water. It works reliably in extreme temperatures ranging from -40°C to +65°C, and its fanless natural convection cooling system ensures quiet operation and reduces the risk of failure.

Its compact housing, measuring 260 × 220 × 43 mm and weighing only 3.1 kg, allows for easy installation even in tight spaces. Additionally, the inverter offers Wi-Fi monitoring and comes with a 10-year manufacturer warranty, confirming its high quality and long-term performance.

General Information:

• 2 independent MPPTs
• Integrated WiFi communication
• Type III SPD on AC side
• Fast shutdown
• Monitoring at module level
• Online smart service and maintenance
• LED display

The Growatt balcony set should include:

1 x Microinverter Growatt NEO 800M-X

1 x GROWATT Power Cord for NEO 5m

1 x Growatt NOAH 2000 Battery

Basic informations:
